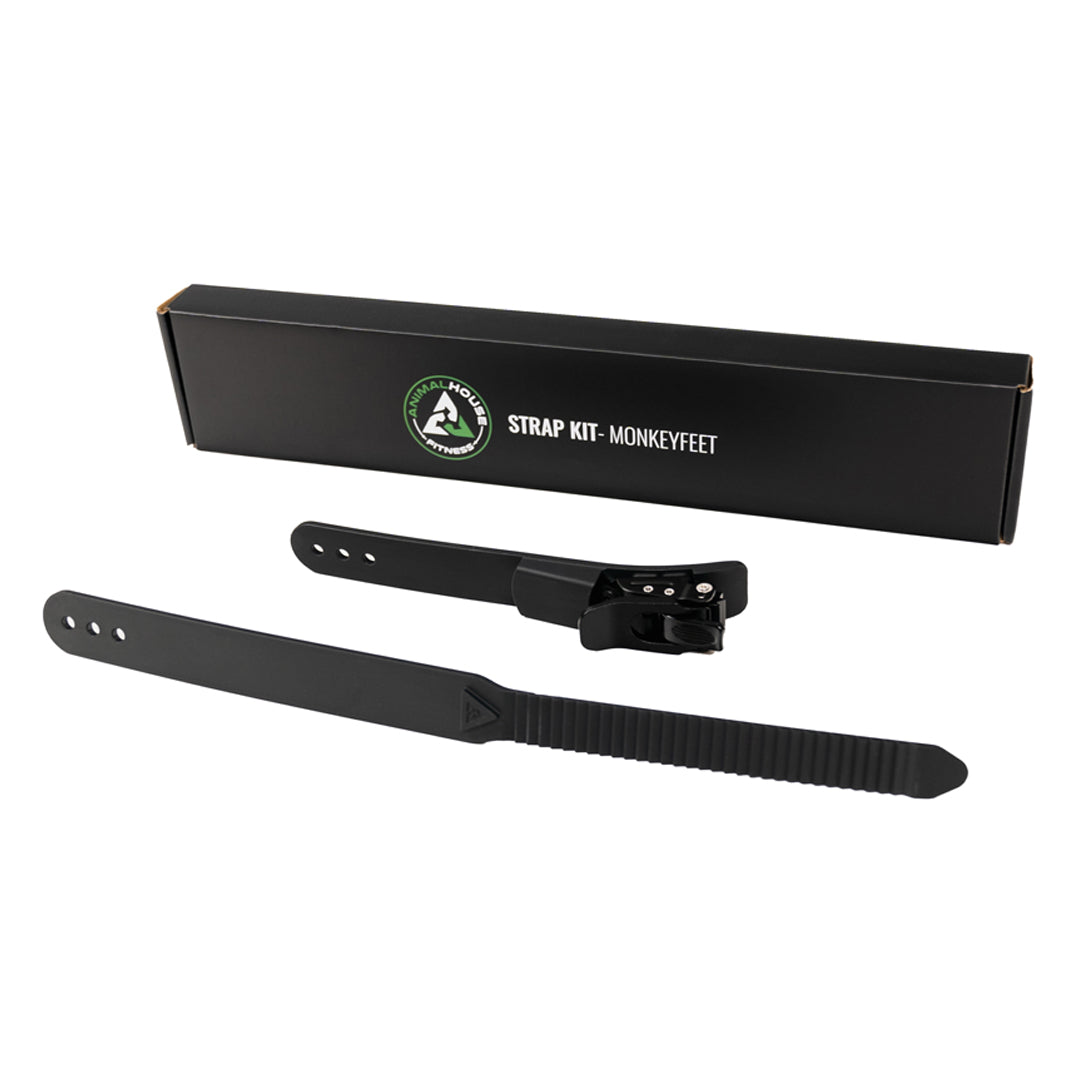

Installation Guide - Strap Kit
Paul JacksonShare
Step 1
Fold the MonkeyFeet downwards
Step 2
Use your tools to loosen the strap on the left side of the MonkeyFeet
Remove the bolt, nut, and washer. Set aside for later use
Step 3
Remove strap from the front padded part
Now insert the new Ridged Strap, into the front padded part
Step 4
Insert bolt and place into whichever length hole is desired. Next, add the washer and then the nut
Note: The Strap Kit comes installed on the middle hole as standard on new MonkeyFeet units
Use your hand to first slightly thread the nut
Step 5
Tighten until the nut firmly bottoms out on the metal bolt
Make sure to not over-tighten the nut
Step 6
We will now be removing the ratchet side
Remove the bolt, nut, and washer. Set aside for later use
Step 7
Replace ratchet strap with new ratchet strap
Step 8
Insert bolt and place into whichever length hole is desired. Next, add the washer and then the nut
Note: The Strap Kit comes installed on the middle hole as standard on new MonkeyFeet units
Use your hand to first slightly thread the nut
Step 9
Tighten until the nut firmly bottoms out on the metal bolt
Make sure to not over-tighten the nut
